Core 250

The Core 250 comes in two builds. Core 250 S handles storage duty, Core 250 H adds hybrid conversion for PV-coupled sites, and both are sized from your metered load through the PKE dispatch study.

Request datasheet Check the fit
Core 250 Storage and Hybrid units
CORE 250 FAMILY / STORAGE · HYBRID
01Specification

The numbers

FeatureStorageHybrid
Battery capacity261.24 kWh261.24 kWh
Rated AC powerUp to 130 kWUp to 130 kW
Paralleling10 on-grid · 4 off-grid10 on-grid · 4 off-grid
PV MPPTNot includedIntegrated, 240 kW
STSNot includedIntegrated, 300 kVA
ArchitectureAC-coupled storagePV-coupled hybrid
Primary applicationPeak shaving, arbitrage, PV shiftingPV, storage, backup, microgrids
IngressIP55 · C4HIP55 · C4H
SPECCORE 250 · PROVISIONAL · CONFIRM AGAINST CONTROLLED DATASHEET

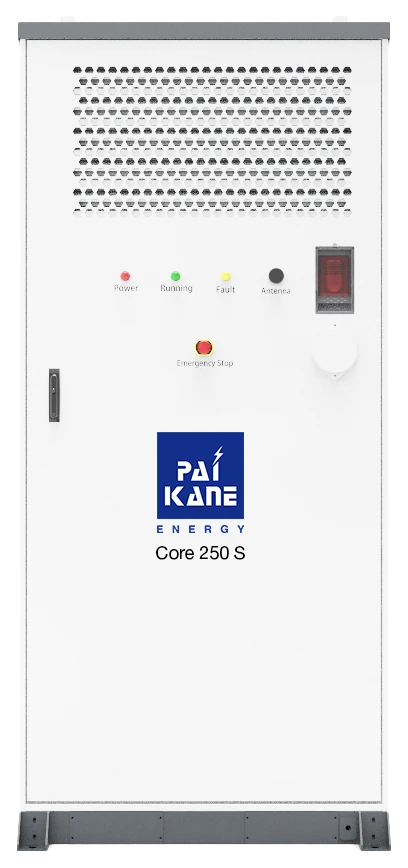

Core 250 storage build
CORE 250 / STORAGE BUILD

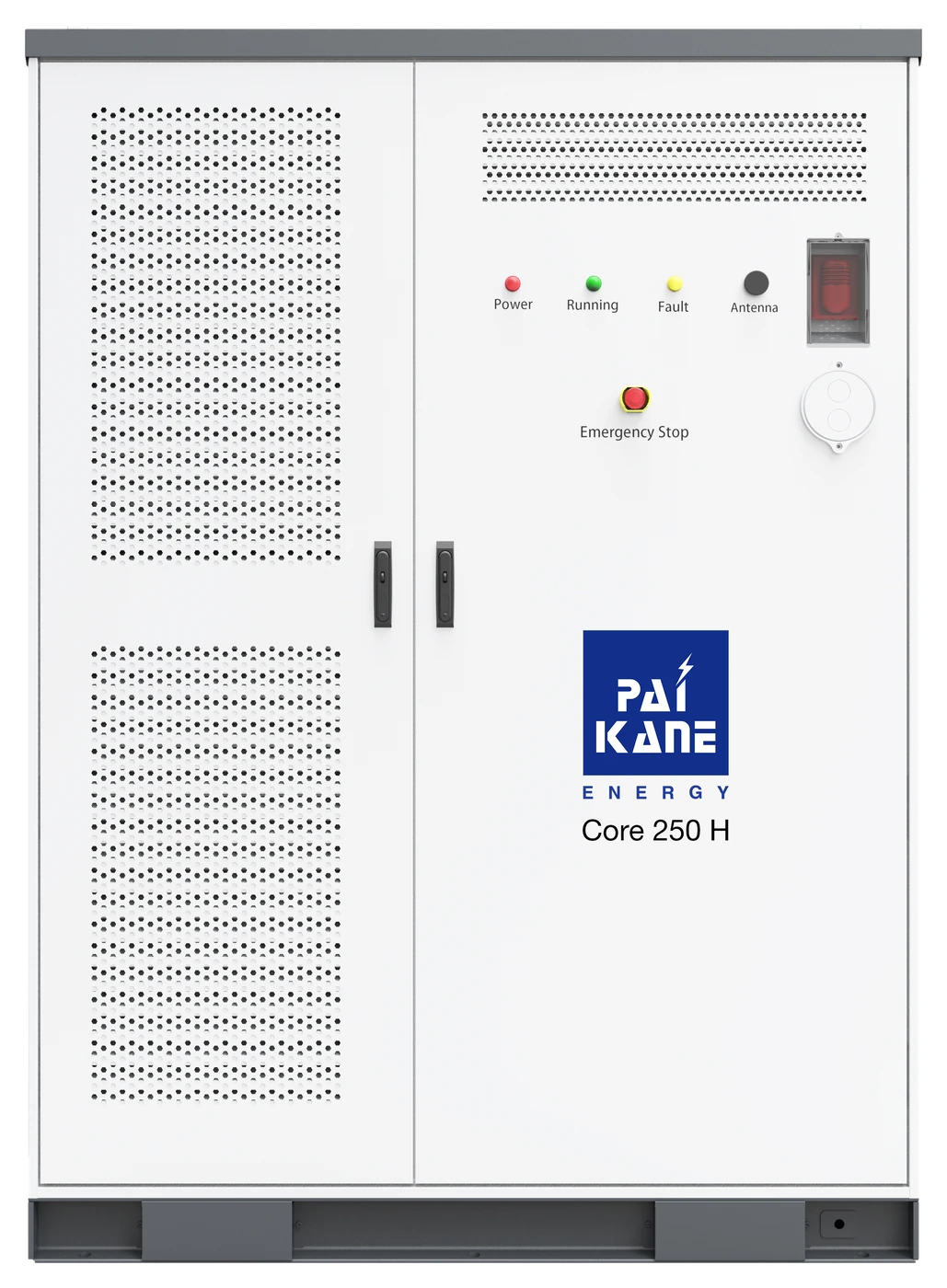

Core 250 hybrid build
CORE 250 / HYBRID BUILD
02Engineering

Why it's built this way

Semi-solid as standard

Semi-solid cells are supplied as standard across the platform, delivering higher capacity retention over the system's life and superior safety versus conventional lithium-ion chemistries.

Two builds, one platform

Choose storage-only or hybrid with integrated PV conversion.

C&I scale

Sits between Core Mini rooftop systems and Core 2000 containers.

USEApplications

Solar shifting · arbitrage · peak shaving · C&I · smart microgrids

Size it from your meter.

Every Core deployment starts with the PKE dispatch study: data first, hardware last.

Start a sizing studyNext: Core 2000
