Products / Stationary

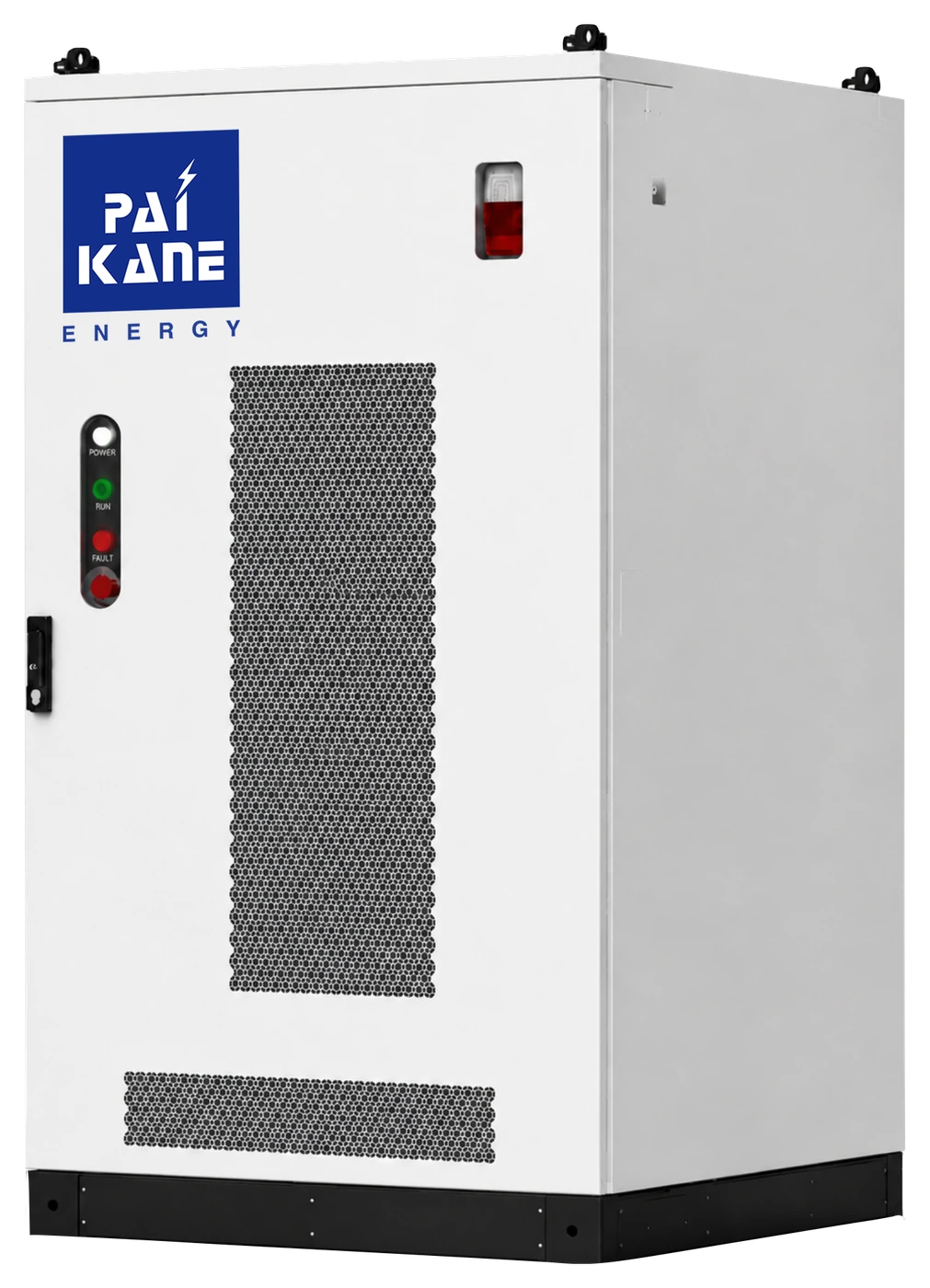

The Core Mini integrates batteries, hybrid PCS, EMS and protection in a single IP55 cabinet, and its four independent MPPTs are built for multi-orientation rooftop solar. When the grid fails, it transfers to off-grid mode in twenty milliseconds or less.
| Core 70 | 30 kW / 72.3 kWh |
| Core 90 | 50 kW / 96.4 kWh |
| Core 120 | 50 kW / 120.5 kWh |
| PV integration | 4 independent MPPTs · up to 75 kW |
| Round-trip efficiency | 92% DC–AC |
| On/off-grid switch | ≤ 20 ms |
| Ingress | IP55 · C4 corrosion class |
| Cooling | HVAC (Core 70) · Forced air-cooling (Core 90/120) |
| Paralleling | 10 on-grid · 4 off-grid |
| Warranty | 5-yr product · 10-yr battery performance |
Batteries, hybrid PCS, EMS and protection in one compact footprint. Site work is a pad and a cable.
Four independent MPPTs and eight PV strings handle east–west and split rooftops without string compromise.
Web- and app-based monitoring; up to 10 systems parallel on-grid, 4 off-grid.
USEApplications
C&I rooftops · offices · retail · light industry · backup with solar
Every Core deployment starts with the PKE dispatch study: data first, hardware last.
